Technical Specification:

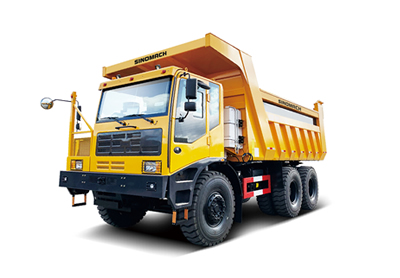

| Model | GKM95P |
| Engine | YUCHAI 520HP |
| Gearbox | FAST 8DS260 |
| Front Axle Capacity (t) | 25 |
| Drive Axle Capacity (t) | 35+35 |
| Lifting System | Front Lifting Cylinder |
| Tire | 16.00-25 36PR |
| Standard Bucket Capacity (m³) | 39 |
| Drive Mode | 6×4 |
| Curb Weight (t) | 32 |
| Rated Payload Capacity (t) | 62 |
| Maximum Gross Machine Weight (t) | 95 |
| Overall Dimension (L×W×H) (mm) | 9300×3500×4260 |
| Inner Dimension of Container (L×W×H) (mm) | 6400×3400×1750 |
| Maximum Speed (km/h) | 42 |
| Maximum Gradeability (%) | 30 |
| Minimum Turning Radius (m) | 12 |
| Minimum Ground Clearance (mm) | 435 |
| Braking System | SORL System |
Gallery
Brief Description
SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
