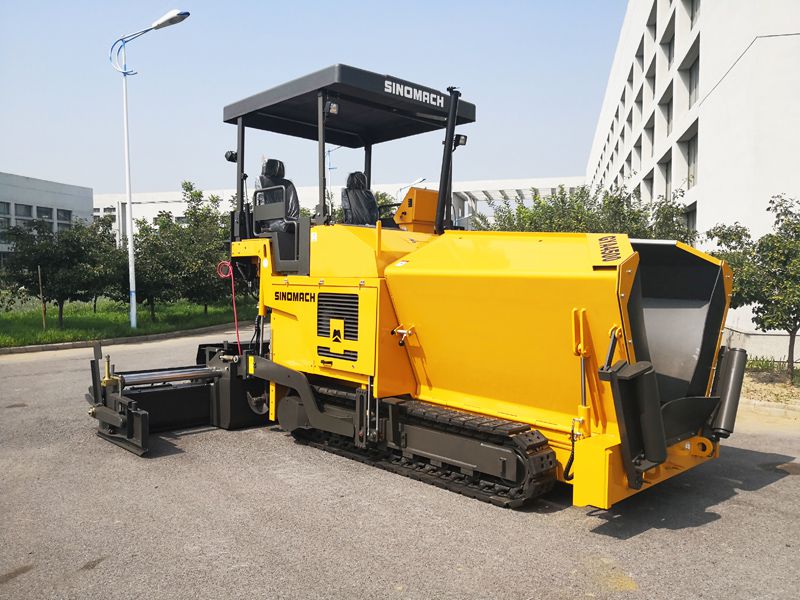

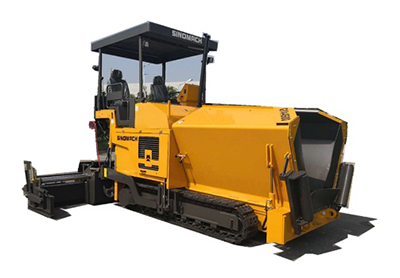

GYA4500 Asphalt Paver

GYA4500 Asphalt Paver
  • Small pavers are widely used for municipal roads, indoor work, small area projects, etc.
  • Dongfeng Cummins EFI engine, strong power, high reliability; good low temperature start-up performance.
  • Equipped with full hydraulic automatic telescopic screed, paving width 1.8-4.5m stepless adjustable.
Download
Consulting Products Information
  • The travel drive system adopts the imported hydraulic piston pump, planetary reducer and plunger motor, which has high reliability; the closed control controls the left and right independent drive modes to ensure stable running of the track drive system, flexible steering and convenient transition.
  • External multi-point propane gas heating device, reliable ignition, fast heating speed and uniform heat distribution, and automatic flame-off function for flameout, improving safety of use.
Technical Specification:
Model GYA4500
Length×Width×Height (mm): 5500×2050×3415
Total weight (kg): 10500
Engine Cummins QSB 3.9-C125
Rated output (kw) 93
Basic paving width (mm) 2000
Max. paving width (mm) 4500
Max. paving thickness (mm) 200
Travelling type Crawler
Travelling speed (km/h) 0-4.5
Paving speed (m/min) 0-20
Hoper capacity (t) 8

Besides the GYA4500 asphalt paver, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.

Gallery

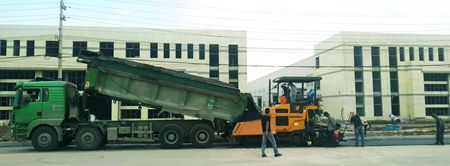

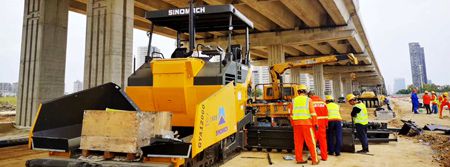

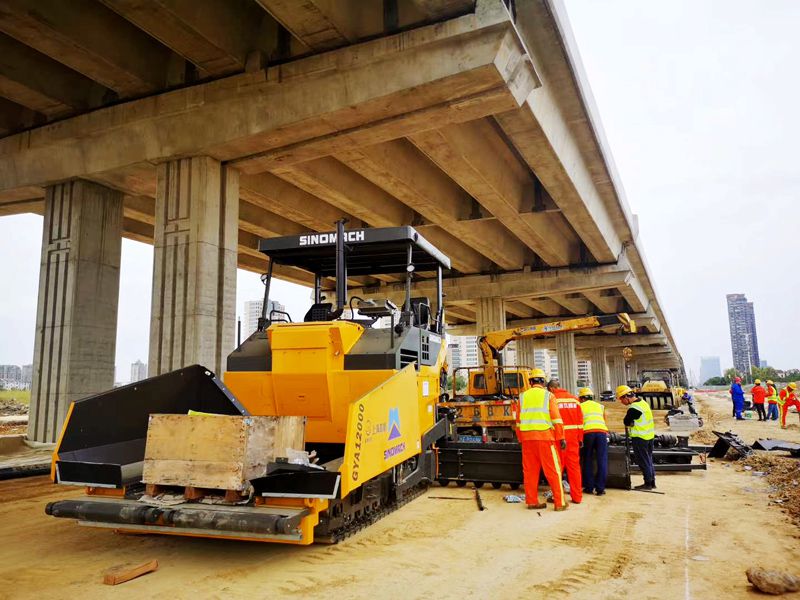

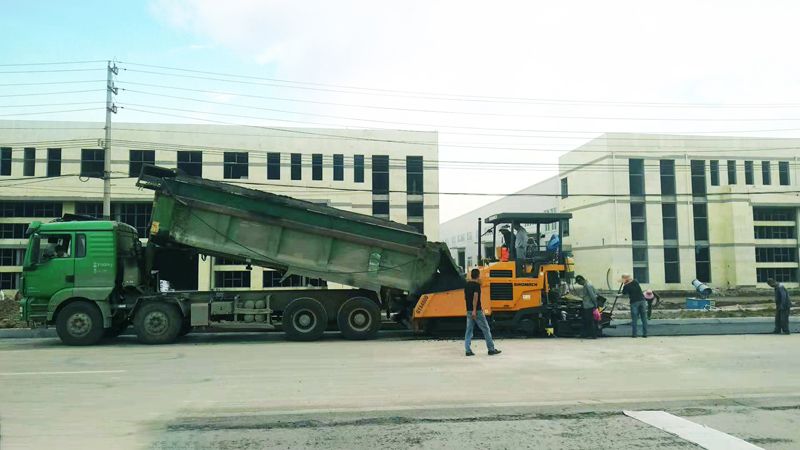

GYA4500 Asphalt Paver
GYA4500 Asphalt Paver
GYA4500 Asphalt Paver
Brief Description

SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
