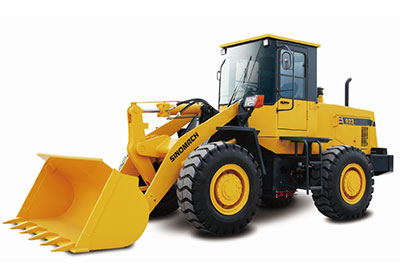

933 Wheel Loader

933 Wheel Loader
  • This 933 Wheel Loader is equipped with three forward and three reverse gears
  • Hydraulic cylinder comes with combination seal for reliability in performance
Download
Consulting Products Information
Technical Specification:
Model 933
Length×Width×Height(mm) 6863×2430×3104
Rated load (Kg) 3000
Rated bucket capacity(m3) 1.7
Operating weight(Kg) 10200
Diesel engine WEICHAI WP6G125E22/
YUCHAI YC6B125-T20
Rated output(KW) 92
Transmission case SINOMACH
Gear positions 3 forward gear, 3 reverse gear
Max. drawing force(KN) 83
Max. dump clearance(mm) 2934
Dump reach (mm) 1043
Wheel base(mm) 2750
Total cycle time (s) 9.2
Gallery
  • Images

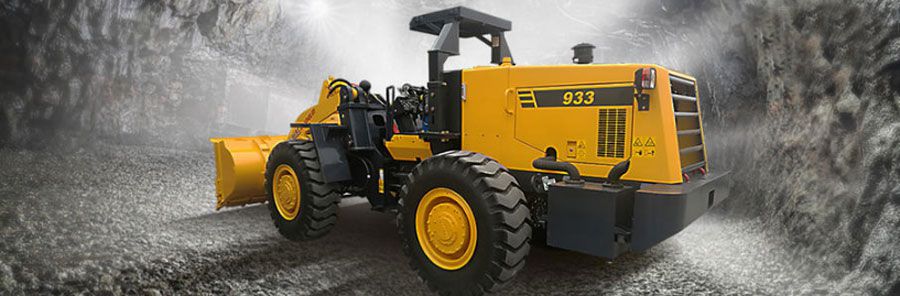

  • VR View

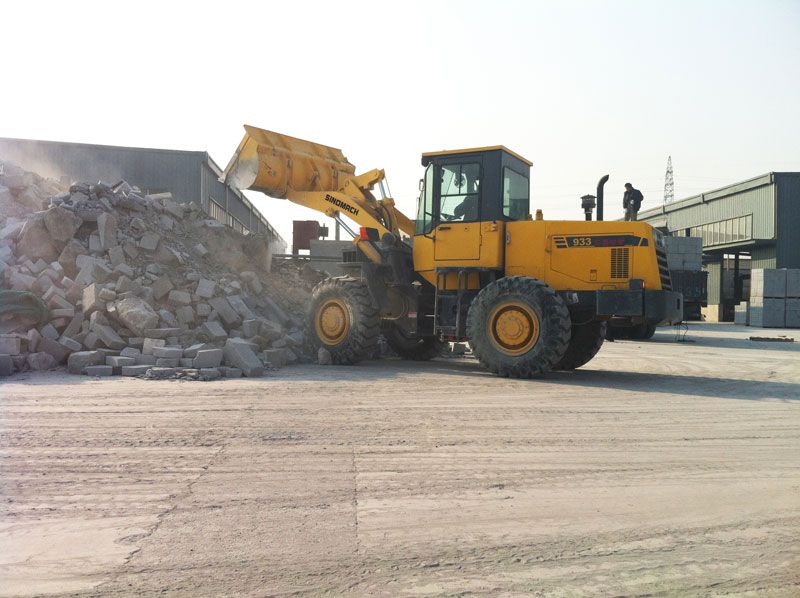

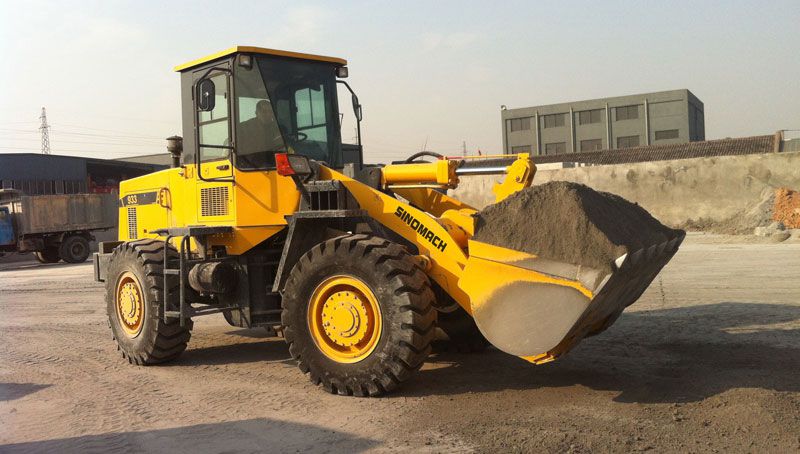

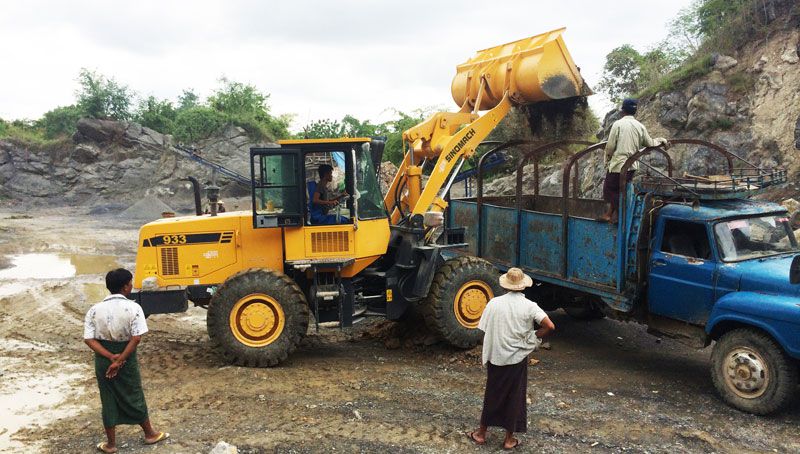

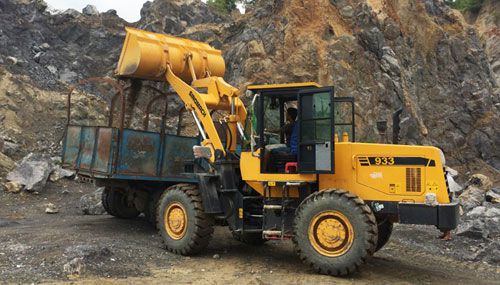

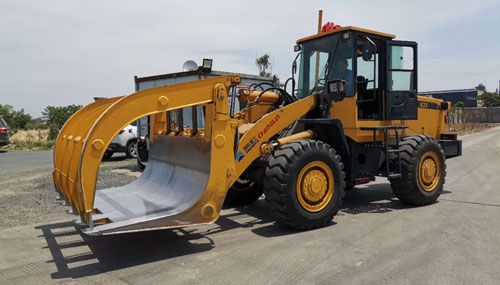

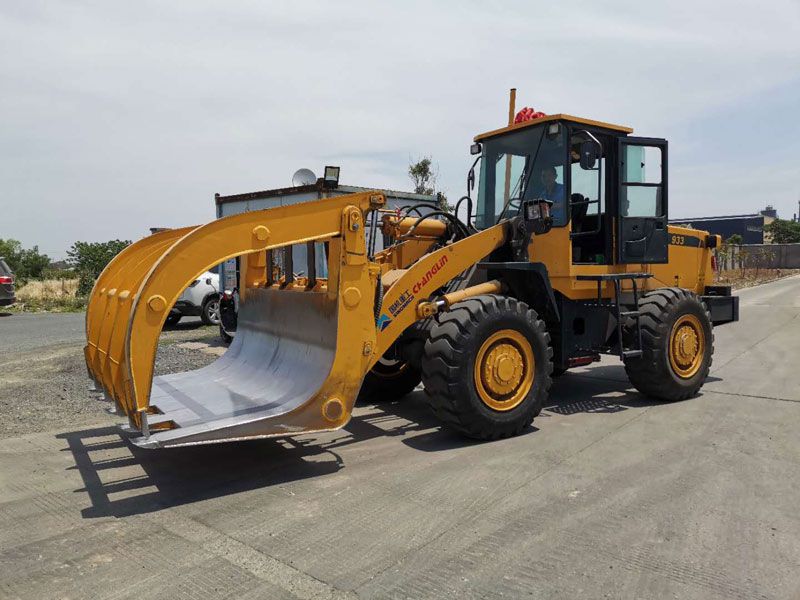

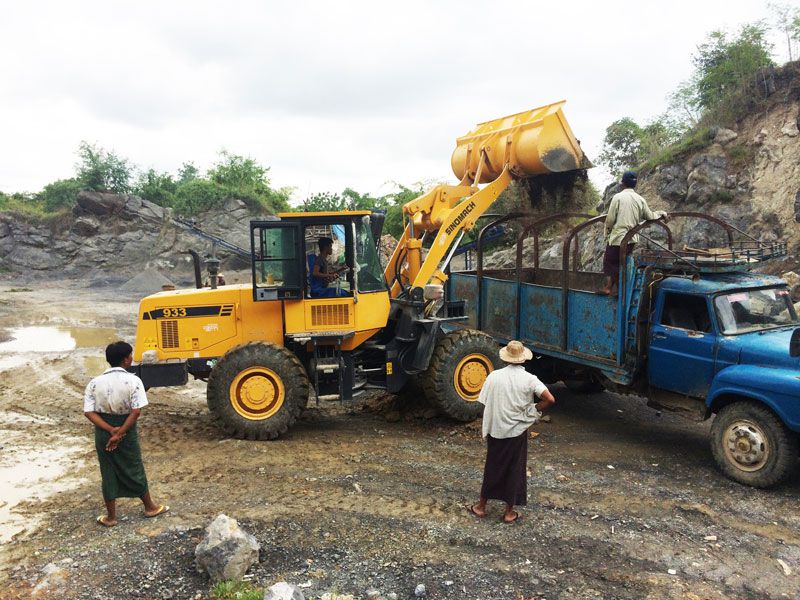

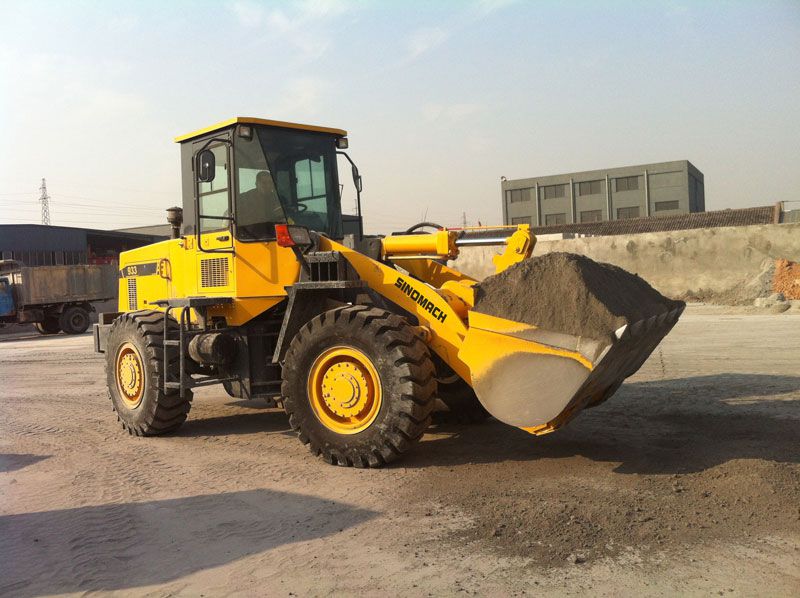

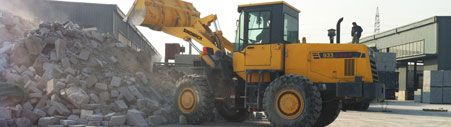

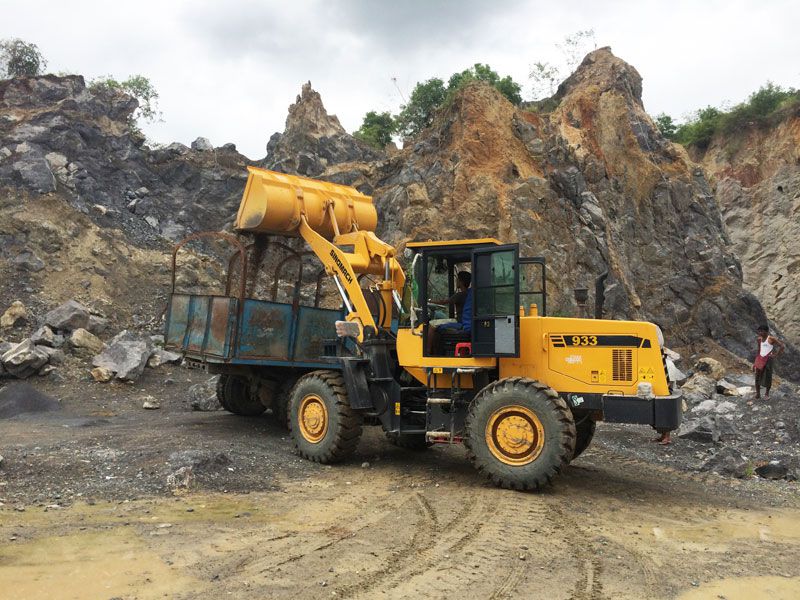

933 Wheel Loader
933 Wheel Loader
933 Wheel Loader
933 Wheel Loader
933 Wheel Loader
933 Wheel Loader
